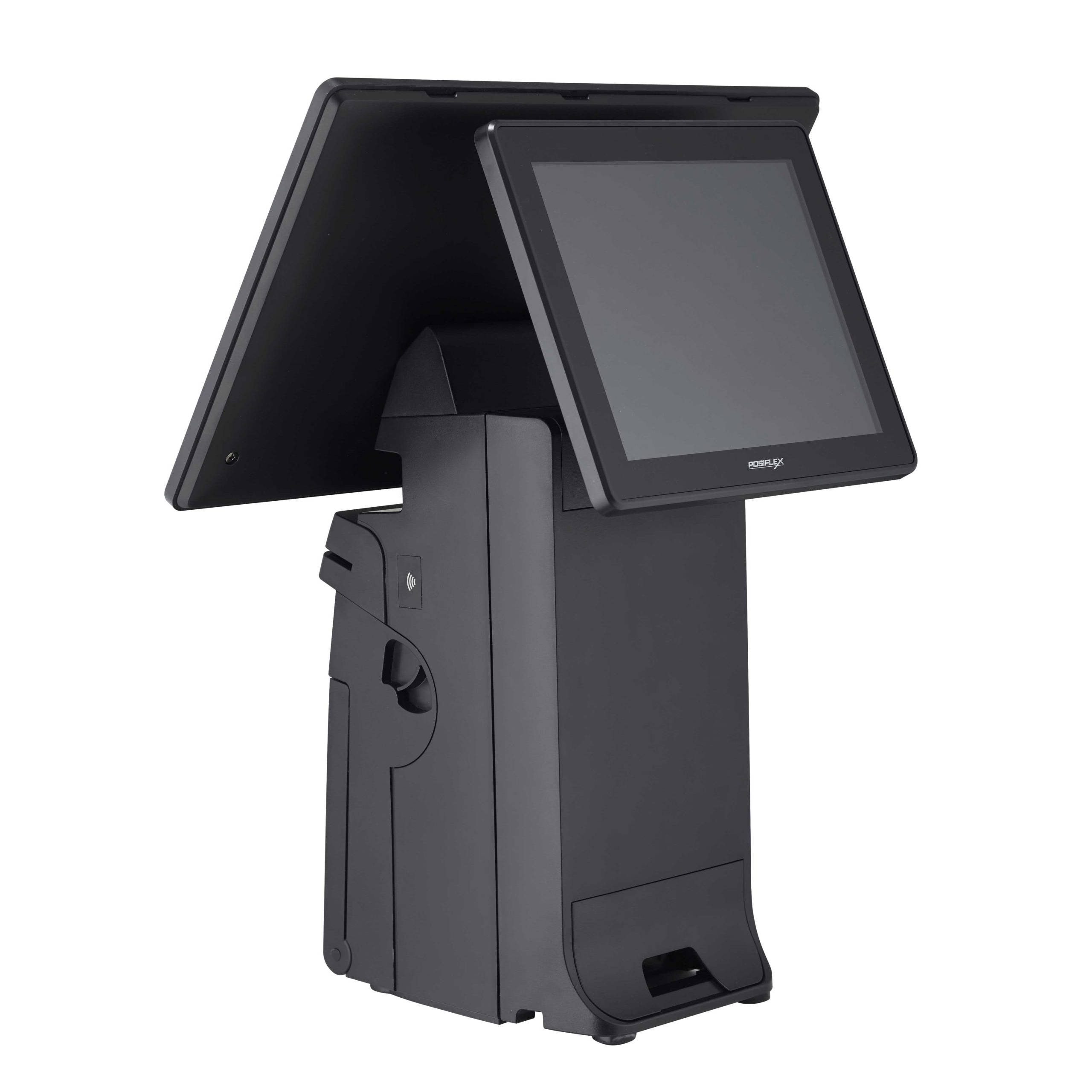

HS2414A

Feature-Packed POS Terminal


The HS2414A is an all in one POS terminal packing in all the peripherals for different applications into one machine. Designed as a solution for the counter space problem, this all in one POS terminal extends the possibility of maximizing sales in a store.

Add to Compare

Key Features


  • 14-inch PCAP Touch IP65
  • Quad Core Processor
  • Android OS (Ver 7.1)
  • Mifare NFC, Scanner, 4G Sim,Fingerprint, WIFI, and MSR options
  • Inbuilt 3- inch Printer with Auto cutter
Category:

Additional information

System Configuration
Processor

Allwinner A64 Quad Core CPU, 1.20GHz

Storage Device

Default 16 GB eMMC + MicroSD slot x 1

System Memory

2 GB DDR3

OS Support

Android 7.1

Power Supply

24V / 60W
Display & Touch
LCD Display

14" TFT LCD

Resolution

1366 x 768

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Audio

Internal 2W speaker x 1

CR Port

1, control 2 CR via optional Y-cable

Display Port

VGA x 1, 12V support for Posiflex monitors

Fingerprint Sensor

Optical type

LAN Port

10/100/1000Mb x1

PS/2 Port

Yes

OTG USB

Micro-USB x 1

Serial Port

DB9 x 2, 5V / 12V support on COM 2

Standard USB Port

USB 2.0 x 3

UPS Port

Yes
Built-in Option
Built-in MSR

Optional Integrated 3 track module (HID/VCOM Selectable)

Built-in Printer

3″ detachable printer w/auto cutter, 250 mm/sec (default.)

Built-in RFID Reader

Optional Integrated, support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)

Built-in WIFI

Optional Internal mini-PCIe WIFI module with PIFA antenna

Scanner

2D barcode scanner

4G / LTE

4G / LTE support with full SIM slot
Physical Characteristics
Dimension (W x D x H in mm)

371.5 x 198 x 473

Weight (N.W. in Kg)

5.8
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
More
iButton

Yes (cannot coexist with Fingerprint Sensor)
E-Brochures
Brochure for HS-2414A (EN) Download
