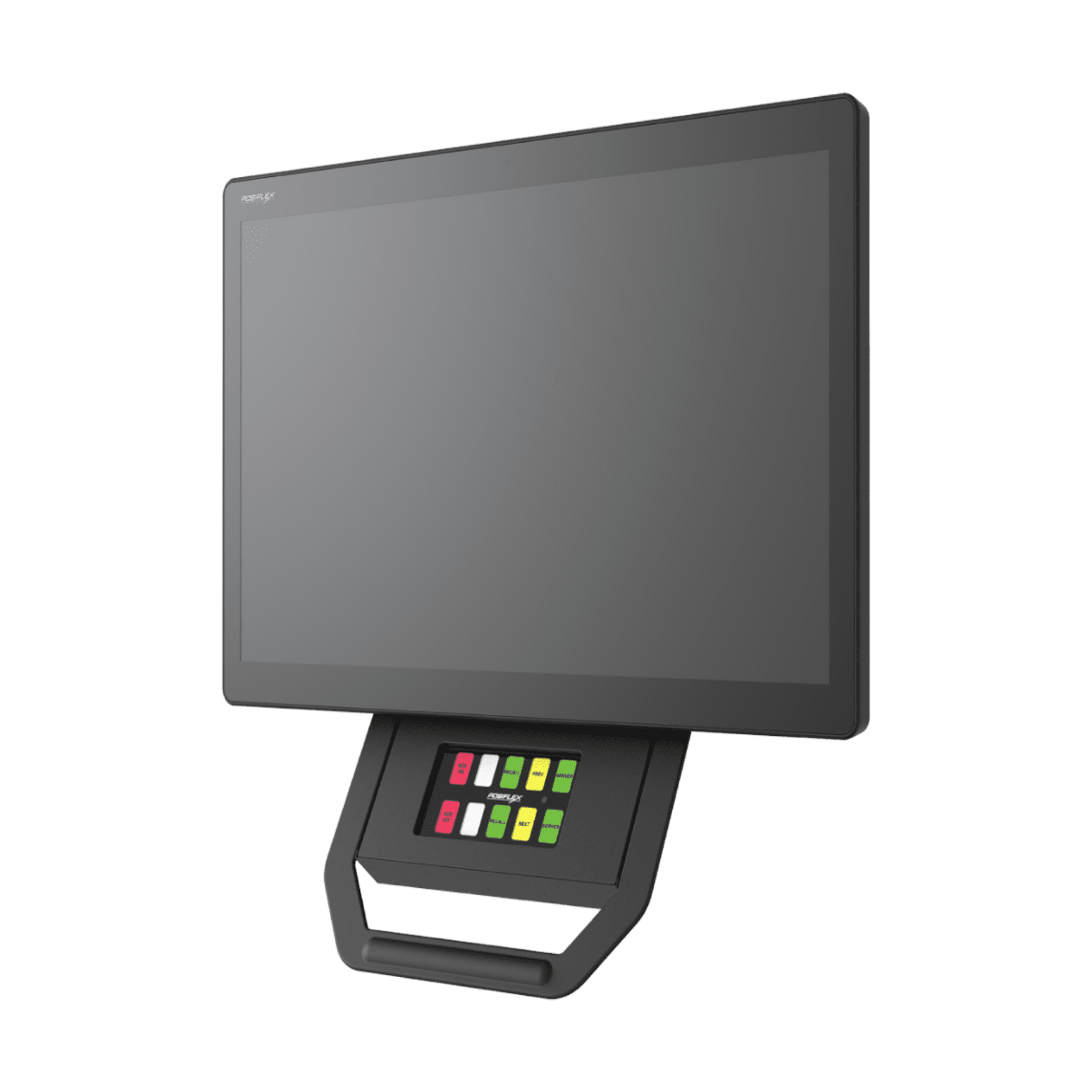

KDS

Kitchen Display System


Constructed as an ultra-slim Design, the KDS is built with durability in mind that is guaranteed to offer robust performance and wide configuration options. The hardware consists of a J1900 processor with OS support of Windows and Linux as per request.

Add to Compare

Key Features


  • 5-wire Touch screen
  • Great Build Quality
  • Powerful Performance
  • 5 standard USB ports
Category:

Additional information

System Configuration
Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache

Storage Device

SATA x 1, 64GB or 128GB SSD or 500GB HDD (to select)

System Memory

DDR3L SO-DIMM x 1, max. 8GB (Default 4GB)

OS Support

Windows 7/POS Ready 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request

Power Supply

Default 12V/40W – Optional to order 12v/60w when use with 2nd screen LM3210/TM3010

Display & Touch
LCD Display

15.6″ TFT LCD

Resolution

Default 1024 x 768, 1366 x 768 max.

Touch Function

Multi-touch PCAP

IP Level

IP65 front panel

I/O & Expansion
Audio

Buzzer only

CR Port

1, control 2 CR via optional Y-cable

Display Port

VGA x 1, 12V support for Posiflex monitors

LAN Port

10/100/1000 Mb x 1

Parallel Port

1, via optional conversion cable through service window (to be ordered separately)

PS/2 Port

1, via optional conversion cable through service window

Serial Port

4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports

Standard USB Port

USB 2.0 x 5

Physical Characteristics
Dimension (W x D x H in mm)

372 x 252.7 x 291.4

Weight (N.W. in Kg)

4.7

Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

Brochure
Brochure for KDS (EN) Download

Drivers & Utility
KDS Chipset device Software installer for Win7/Win8.1_32Bit/64Bit Download
KDS Chipset device Software installer for Win10_32Bit/64Bit Download
KDS Intel TXE Driver for Win7/Win8.1_32Bit/64Bit Download
KDS Intel TXE Driver for Win10_32Bit/64Bit Download
KDS HotFix Driver for Win7_32Bit Download
KDS HotFix Driver for Win7_64Bit Download
KDS Graphics Driver for Win7/Win8.1/Win10_32Bit Download
KDS Graphics Driver for Win7/Win8.1/Win10_64Bit Download
KDS USB 3.0 Driver for Win7_32Bit/64Bit Download
KDS Realtek Audio Driver for Win7/Win8.1/Win10_32Bit/64Bit Download
KDS Realtek LAN Driver for Win7_32Bit/64Bit Download
KDS Realtek LAN Driver for Win8.1_32Bit/64Bit Download
KDS Realtek LAN Driver for Win10_32bit/64Bit Download
KDS Buffalo Single Band WIFI Driver for Win7/Win8.1/Win10_32bit/64Bit Download
KDS Dual USB Resistance/IR Touch Manager Download
