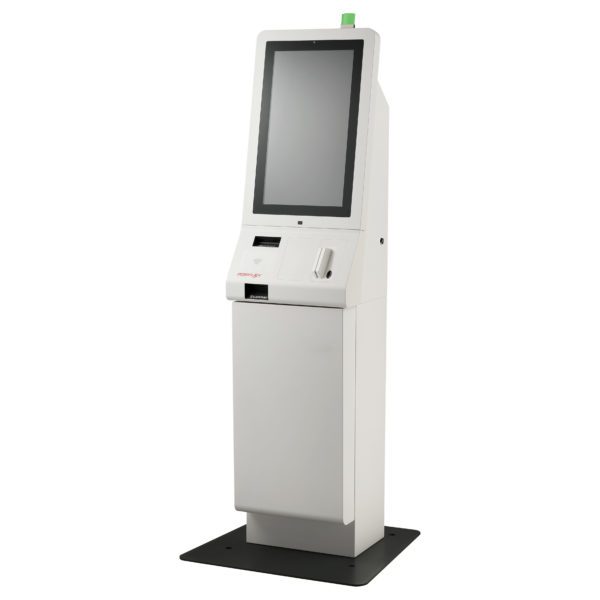

KT2100 / 2150

Self-Service Kiosk


Built to self-serve, the KT2100/2150 comes with a 21.5-inch touch screen that is perfect for assisting people at retail Point-of-Sale, restaurant self-ordering or food court pre-ordering, hotel self-check-in, hospital patient check-in, and cinema or museum self-ticketing.

Category: Add to Compare

Key Features


  • 21.5-inch PCAP Touch Screen
  • Quad Core or i3
  • Windows/Linux/Android OS Support
  • Wall or Floor Mountable
  • Option for 2D scanner, MSR, Fingerprint, and NFC Attachments

Additional information

System Configuration
Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache, Intel Skylake Core i3-6100U, 2.30 GHz, 3M Cache

Storage Device

SATA SSD x 1

System Memory

DDR3L SO-DIMM slot x 1, max. 8 GB ;DDR4 SO-DIMM slot x 2, max. 16 GB

OS Support

Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT Industry 64 bit/Win 10 IoT 64 bit

Power Supply

12V/150W
Display & Touch
LCD Display

21.5″

Resolution

1920 x 1080

Touch Function

True-flat PCAP touch with multi-touch support
I/O & Expansion
Audio

Internal 3W speaker x 2

Extension Slot

M.2 x 1

LAN Port

10/100/1000 Mb x 1
Built-in Option
Built-in MSR

3 tracks ISO or JISII (HID/VCOM selection)

Built-in Printer

3″ detachable printer w/auto cutter, 200 mm/sec (max.)

Built-in Webcam

1 MP

Built-in WIFI

M.2 WiFi/BT module
Physical Characteristics
Dimension (W x D x H in mm)

400 x 330 x 1621

Weight (N.W. in Kg)

60 (w/pedestal)
Environment
Operating Condition

0°C – 40°C, 20%RH – 90%RH (Equipped with HDD)
E-Brochures
Brochure for KT-2100/2150 (EN) Download
Drivers & Utility
TK-2100 Series Chipset device Software installer for Win10_32Bit/64Bit Download
TK-2100 Series Chipset device Software installer for Win7/Win8.1_32Bit/64Bit Download
TK-2100 Series Chipset device Software installer for Win7/Win8.1/Win10_32Bit/64Bit Download
TK-2100 Series Intel TXE Driver for Win10_32Bit/64Bit Download
TK-2100 Series Intel TXE Driver for Win7/Win8.1_32Bit/64Bit Download
TK-2100 Series Intel ME Driver for Win7/Win8.1/Win10_32Bit/64Bit Download
TK-2100 Series HotFix Driver for Win7_64Bit Download
TK-2100 Series HotFix Driver for Win7_32Bit Download
TK-2100 Series HotFix Driver for Win7_64Bit Download
TK-2100 Series HotFix Driver for Win7_32Bit Download
TK-2100 Series Intel Serial IO Driver for Win8.1/Win10_64Bit Download
TK-2100 Series Intel Serial IO Driver for Win7_64Bit Download
TK-2100 Series Graphics Driver for Win7/Win8.1/Win10_64Bit Download
TK-2100 Series Graphics Driver for Win7/Win8.1/Win10_32Bit Download
TK-2100 Series Graphics Driver for Win7/Win8.1/Win10_64Bit Download
TK-2100 Series Graphics Driver for Win7_32Bitt Download
TK-2100 Series USB 3.0 Driver for Win7_32Bit/64Bit Download
TK-2100 Series USB 3.0 Driver for Win8.1_64Bit Download
TK-2150 Series USB 3.0 Driver for Win7_32Bit/64Bit Download
TK-2100/TK-2150 Series Realtek Audio Driver for Win7/Win8.1/Win10_32Bit/64Bit Download
TK-2100 Series Realtek LAN Driver for Win10_32bit/64Bit Download
TK-2100 Series Realtek LAN Driver for Win8.1_32Bit/64Bit Download
TK-2100 Series Realtek LAN Driver for Win7_32Bit/64Bit Download
TK-2100 Series Intel LAN Driver for Win7/Win8.1/Win10_32Bit/64Bit Download
TK-2100/TK-2150 Series Intel AC7265 Dual Band Bluetooth Driver for Win10_32bit/64Bit Download
TK-2100/TK-2150 Series Intel AC7265 Dual Band Bluetooth Driver for Win8.1_32bit/64Bit Download
TK-2100/TK-2150 Series Intel AC7265 Dual Band Bluetooth Driver for Win7_32bit/64Bit Download
TK-2100/TK-2150 Series Intel AC7265 Dual Band WiFi Driver for Win7/Win8.1/Win10_32bit/64Bit Download
TK-2100/TK-2150 Series USB Touch Beep for Win7/Win8.1/Win10_32Bit/64Bit Download
TK2100 Series thermal Printer Driver for WinXP/Win7/Win8/Win10_32Bit Download
TK2100 Series thermal Printer Driver for WinXP/Win7/Win8/Win10_64Bit Download
TK2100 Series USB Virtual Com Port Driver for WinXP/Win7/Win8/Win10_32Bit/64Bit Download
TK2100 Series thermal Printer Software Switch Utility for Windows_32Bit/64Bit Download
TK2100 Series MSR Manager Utility for USB interface Magnetic Stripe Card Reader Download
TK2100Series Fingerprint Reader Driver for Win7/Win8/Win10_32Bit/64Bit Download
TK2100 Series Moving Sensor SDK for Windows Download
TK2100 Series Status Indicator SDK for Windows Download
