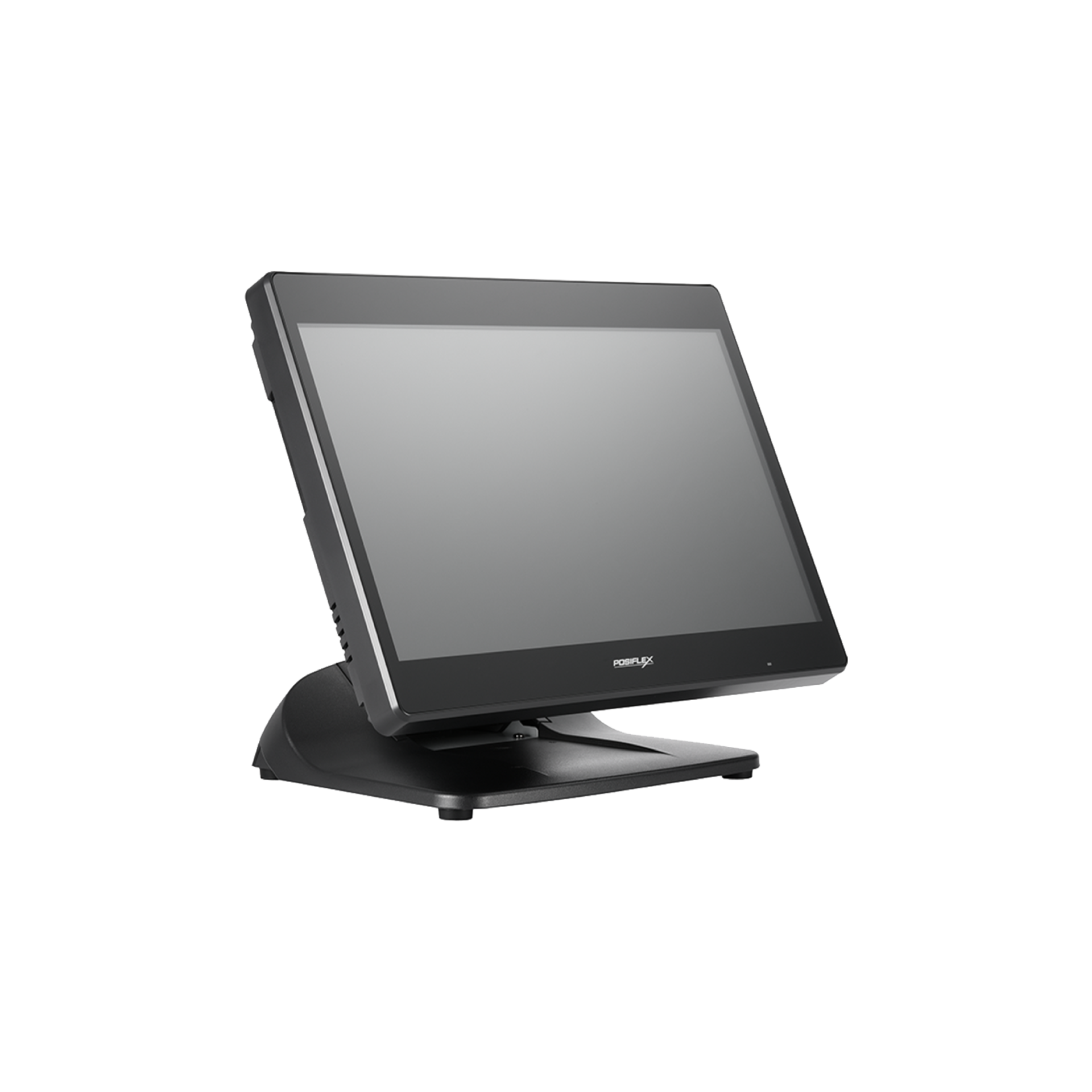

PS3216A

Great Features with Amazing Performance


Made for 24/7 businesses, the PS 3216A is an ideal machine for different processes that packs in good hardware. The machine also offers various mounting options for convenience and increased versatility.

Category: Add to Compare

Key Features


  • 15.6-inch PCAP LCD Touch IP65
  • Rockchip RK3399 Latest Processor
  • Latest Android OS (Ver 9.0)
  • Standard 4G and 64GB ROM
  • Tabletop & Wall Mount Option

Additional information

System Configuration
Processor

Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz

System Memory

2 GB DDR4, upgradable to 4 GB

OS Support

Android 9.0

Power Supply

12V / 40W
Display & Touch
LCD Display

15.6″ TFT LCD

Resolution

1366 x 768

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Audio

Inbuilt 2W Speaker X 1

Display Port

HDMIx1

Extension Slot

Mini-PCIe for WiFi/BT Module x 1

LAN Port

10 / 100 / 1000 Mb x 1

OTG USB

Micro-USB x 1

Serial Port

DB9x2

Standard USB Port

USB 2.0 x 5
Physical Characteristics
Dimension (W x D x H in mm)

372 x 252.7 x 291.4

Weight (N.W. in Kg)

4.7
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
Attachment Options
Line Display

2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display

POS Monitor

Non-touch TFT USB LCD: 10.1-inch, PCAP touch TFT USB LCD: 10.1-inch

Note

Google Play services is not supported by this device.
More
Peripherals

MSR; iButton; RFID; Fingerprint Sensor; Keypad
Brochure
Brochure for PS-3216A (EN) Download

Related Products

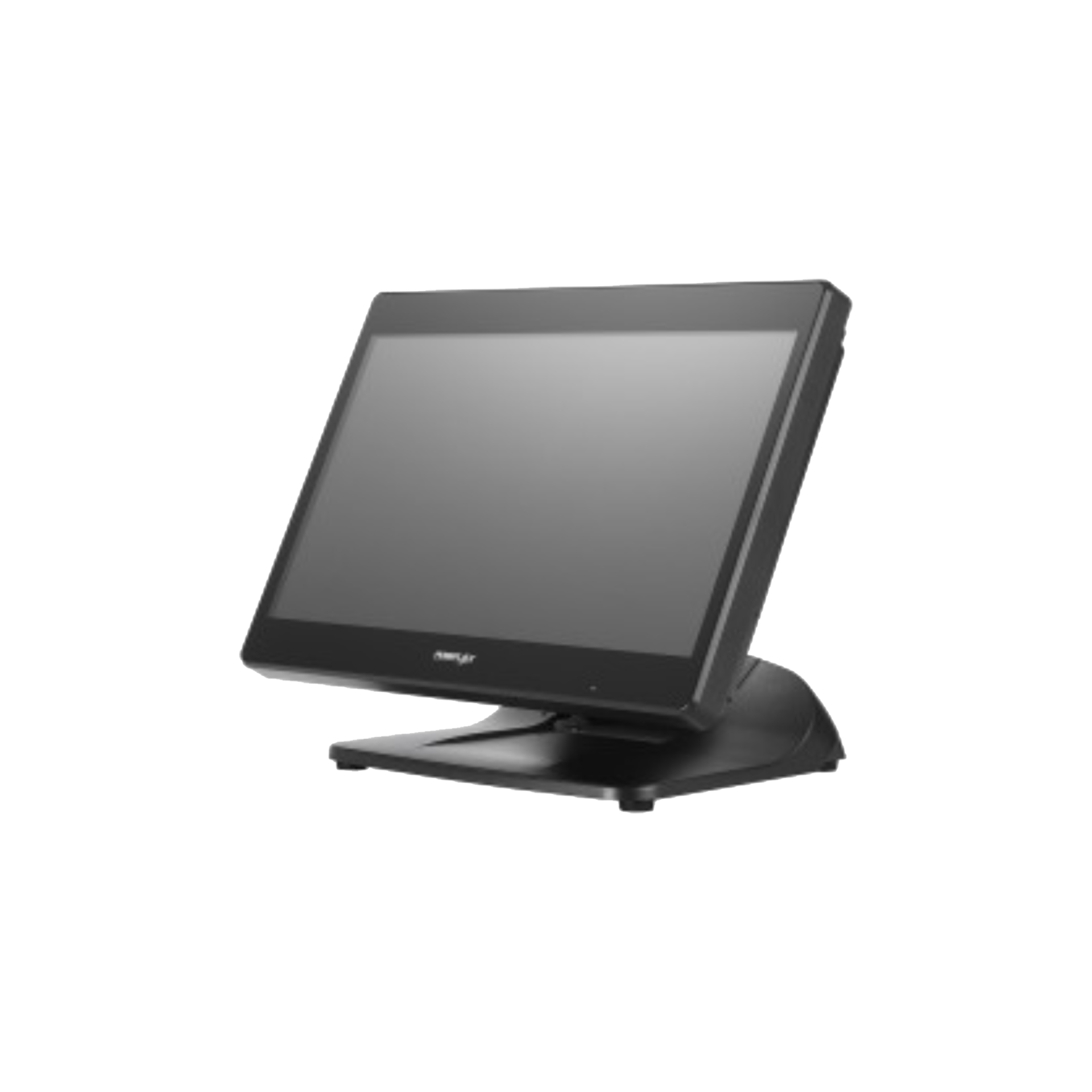

  • PS3616
