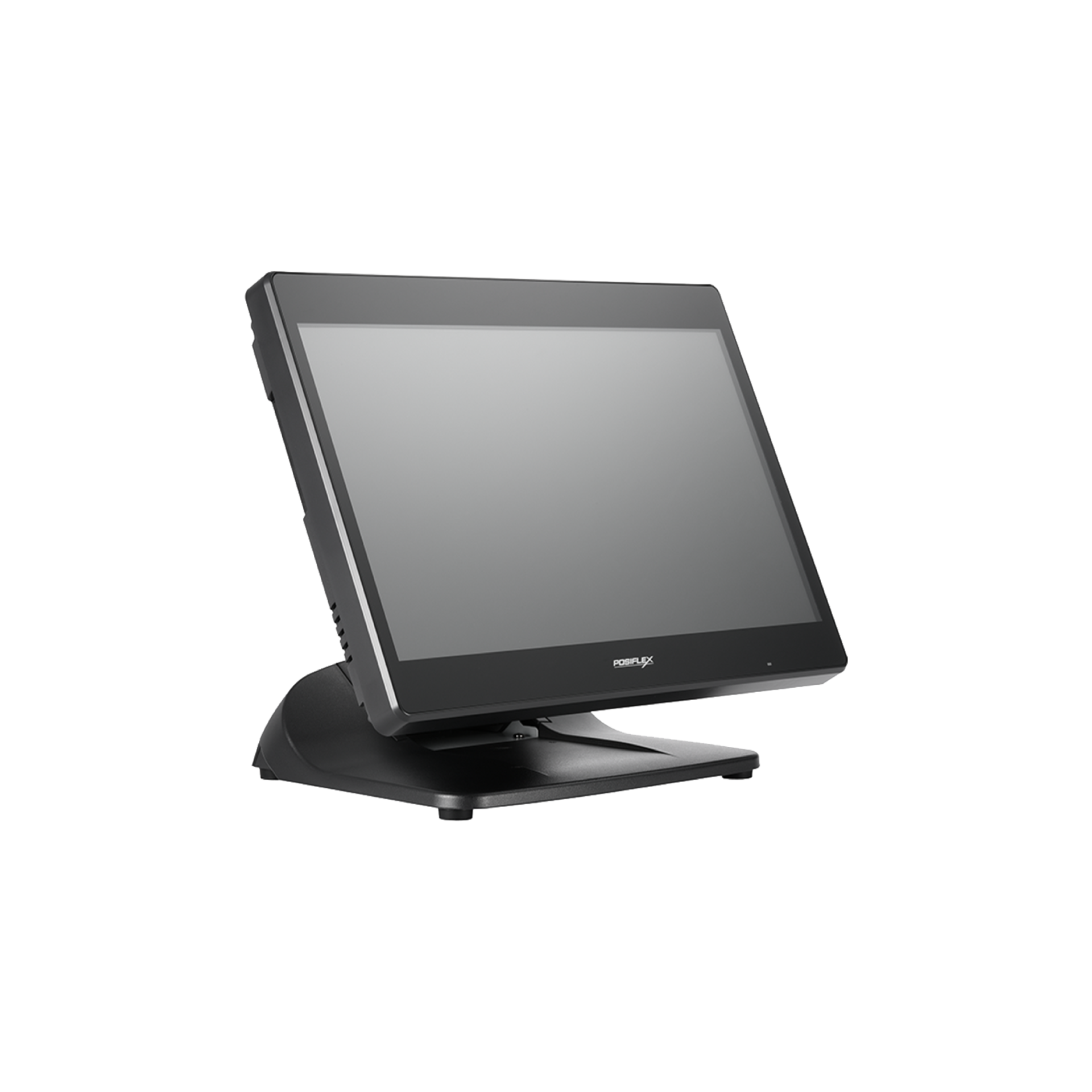

PS3216A
- 15.6-inch PCAP LCD Touch IP65
- Rockchip RK3399 Latest Processor
- Latest Android OS 10 with GMS certfied
- Standard 4 GB DDR4 and 32 GB eMMC
- Google Play Store In-Built
Description
The PS3216A Google mobile services comes with a 15.6” screen with a P- CAP touch screen. The Android POS machine is facilitated with Android 10.0 fanless POS Terminal with the latest android (Version 10.0) and rock chip RK 3399 processor. This mobile POS machine had a standard 4 GB DDR4 and 32 GB eMMC and a built-in Google Play Store. The PS3216A is one of the best Android POS terminal available and is highly useful for daily retail and business operations.
- 15.6-inch PCAP LCD Touch IP65
- Rockchip RK3399 Latest Processor
- Latest Android OS 10 with GMS certfied
- Standard 4 GB DDR4 and 32 GB eMMC
- Google Play Store In-Built
Additional information
| Processor | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz |
|---|---|
| System Memory | 4 GB DDR4 |
| Power Supply | 12V / 40W |
| OS Support | Android 10 w/GMS, Google Play Store In-Built |
| LCD Display | 15.6″ TFT LCD |
| Resolution | 1366 x 768 |
| Touch Function | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| Serial Port | DB9x2 |
| Standard USB Port | USB 2.0 x 5 |
| OTG USB | Micro-USB x 1 |
| LAN Port | 10 / 100 / 1000 Mb x 1 |
| Display Port | HDMIx1 |
| Audio | Inbuilt 2W Speaker X 1 |
| Extension Slot | Mini-PCIe for WiFi/BT Module x 1 |
| Dimension (W x D x H in mm) | 372 x 252.7 x 291.4 |
| Weight (N.W. in Kg) | 4.7 |
| Operating Condition | 0°C – 50°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| POS Monitor | Non-touch TFT USB LCD: 10.1-inch, PCAP touch TFT USB LCD: 10.1-inch |
| Line Display | 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display |
| Peripherals | MSR; iButton; RFID; Fingerprint Sensor; Keypad |
