TM3215E

Secondary Touch Display Monitor

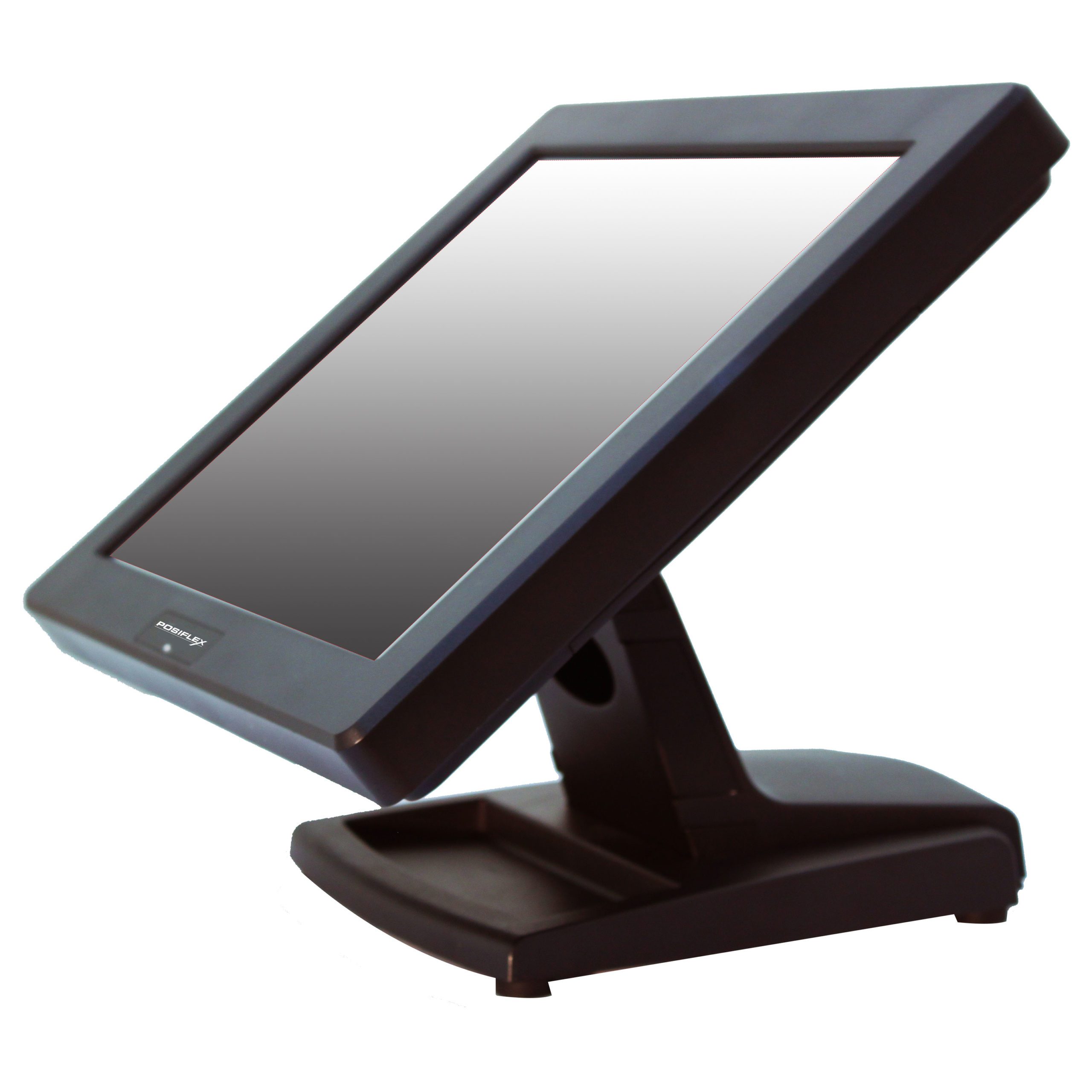

The TM3215E is a POS monitor touch screen that is a 15-inch TFT LCD monitor. This monitor enables the customer to view the receipt, tax, and discounts using the secondary POS monitor. This POS monitor touch screen provides a resistive touch while enabling viewing at different angles. This monitor is also compatible with the XT series and works well as an attachment to POS monitors. This monitor can also be used to run promotion videos and take feedback from the store.

Category: Add to Compare

Key Features


  • 15-inch TFT LCD Monitor
  • Different Viewing Angles
  • Resistive Touch Type
  • Compatible with XT Series

Additional information

System Configuration
Power Supply

12V / 40W

Display & Touch
LCD Display

15" TFT LCD

Resolution

1024 x 768

Touch Function

Resistive Touch

Physical Characteristics
Viewing Angle

80 / 80 / 80 / 80 degree (U / D / L / R)

Others
Active Area

304.128 (H) x 228.096 (V)

Interface

USB

Pixel Arrangement

RGB Vertical Stripe

Pixel Pitch

0.297 (H) x 0.297 (V)

Display
Brightness

250 cd/m2

Contrast Ratio

600 : 1

Display Interface

VGA

Performance Characteristics
Response Time

3 ms (Raising) / 5 ms (Falling)

E-Brochures
Brochure for TM-3215E (EN) Download
User Manual
User Manual for TM/LM-30XXE/32XXE (EN) Download
Drivers & Utility
TM-3215E Series Resistance USB Dual Touch Manager for Windows Download
