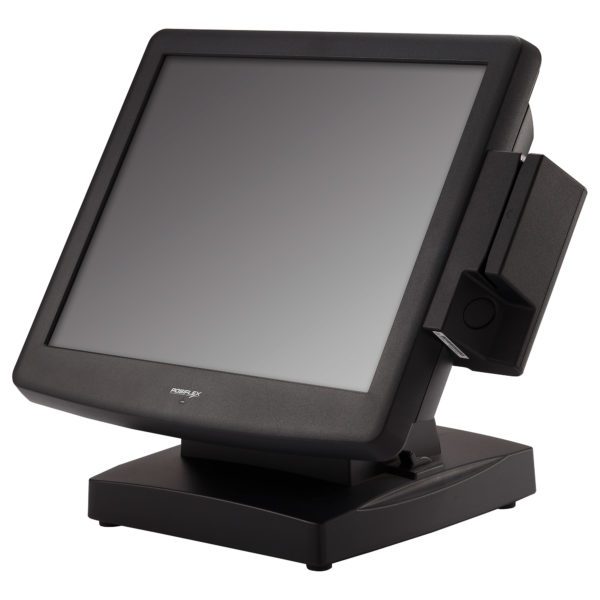

TM7117E / TM7117EIR

POS Peripheral Monitor with Resistive Touch


The TM7117E Series is a standalone touch screen monitor with resistive touch (TM7117E) and IR touch (TM7117EIR) options. Accessory fitments include MSR or a keypad and this POS peripheral can also be wall-mounted.

Category: Add to Compare

Key Features


  • Wall Mountable
  • Attachable Accessories
  • 17-inch Resistive or IR Touch Screen
  • Optional VESA Mounting Kit

Additional information

System Configuration
Power Supply

12V / 40W
Display & Touch
LCD Display

17” TFT LCD

Resolution

1280 x 1024 resolution

Touch Function

Resistive Touch
Physical Characteristics
Dimension (W x D x H in mm)

401 x 286 x 385

Weight (N.W. in Kg)

6.82

Viewing Angle

80 / 80 / 80 / 80 degree (U / D / L / R)
Environment
Operating Condition

Temp: 0-50ﾟHumidity : 20%-85%RH
Touch
Interface

USB
General Specification
Display Interface

VGA
Others
Active Area

377.920 (H) x 270.336 (V)

Pixel Arrangement

RGB Vertical Stripe

Pixel Pitch

0.264 (H) x 0.264 (V)
Display
Brightness

250 cd/m2

Contrast Ratio

1000 : 1

Response Time

3.5 ms (Raising) / 1.5 ms (Falling)
E-Brochures
Brochure for TM7117E / TM7117E-IR (EN) Download
User Manual
User Manual for LM7117E/TM7117E (EN) Download
Drivers & Utility
TM7117X Series Resistance/IR USB Dual Touch Manager for Windows Download
